- Use

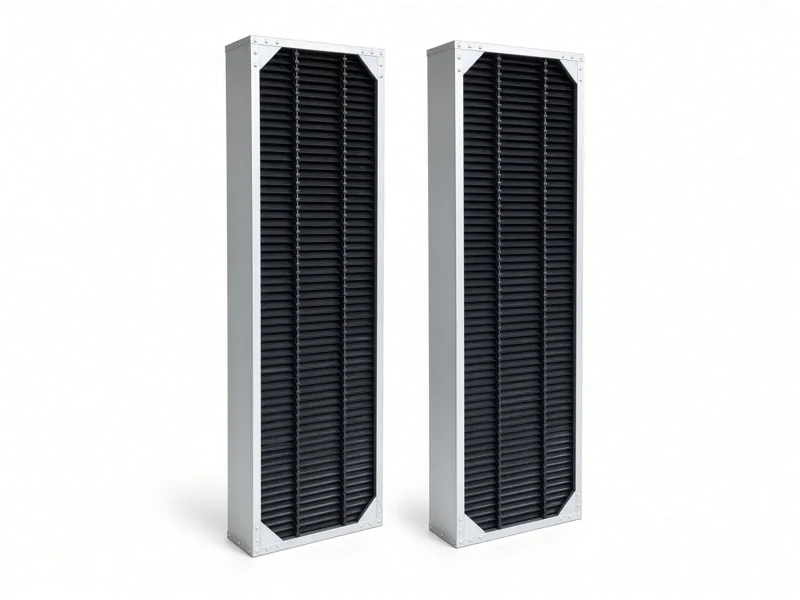

- Dark-out poultry houses at the tunnel fan wall.
- Type
- baffled blade / vane; vertical vanes
- Material
- black PVC with UV inhibitor, or as quoted
- Module sizes
- 24×24 in · 36×36 in · 48×48 in · 60×60 in · custom to opening
- Placement
- Fan openings or a false wall in front of the fans.
- Specified
- separately from tunnel fans and evaporative cooling pads
- Cleaning
- inspect and remove dust; a blocked trap acts as a blocked fan
- What we need to quote
- House length and width; eave height; dark-out or not; fan size and count; country.
- Not published here
- Light-reduction ratio, lux, trap pressure-drop tables, prices.
Specification (quotation)
| Item | Detail |
|---|---|
| Use | confirmed on quotation |
| Type | confirmed on quotation |
| Material | confirmed on quotation |
| Module size | confirmed on quotation |
| Placement | confirmed on quotation |
| Specified with house / fans | confirmed on quotation |
| Face area / trap resistance | confirmed on quotation |
| Light-reduction / lux / pressure drop | confirmed on quotation (not published on the product page) |
| Cleaning / maintenance notes | confirmed on quotation |
| Quote basis | confirmed on quotation (house length/width, eave height, dark-out yes/no, fan size and count, country) |
Catalogue module sizes on the product page help selection. Final face area and resistance stay in the same design as the fans and are confirmed on the written quotation. No public price list.
Module sizes help you choose. Face area is set on the quotation so trap resistance is in the same design as the fans.
Inquiry: email sales@ecoharvestx.com or use contact page.
